What it is

Water Separator

A water separator is a bulk liquid-water knockout device, it strips free liquid water out of the compressed air stream by mechanical means rather than by fine filtration. Instead of forcing the air through a fine medium, it spins the air or routes it through baffles so that centrifugal force and inertia throw the heavier liquid water against the housing wall, where it runs down and collects in the sump for discharge through a condensate drain. Because it works by mass separation, it removes only what is already liquid, the large slugs and droplets the air carries after the compressor and aftercooler. It does not remove water vapor, oil aerosol, or particulate; those are the jobs of the dryer and the fine filter train. In the system the separator sits in the treatment layer near the front of the chain, downstream of the wet receiver and upstream of the dryer, as the coarse first defense against liquid water.

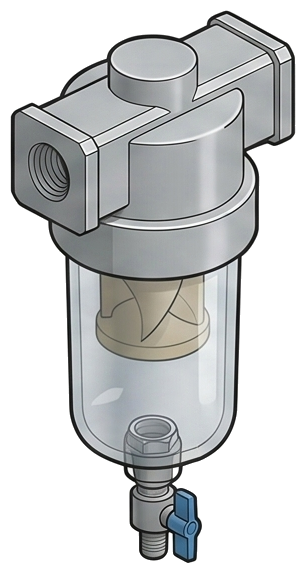

Pictorial Representative water separator

Water Separator — representative illustration

Real-world reference Representative water separator

Water Separator — representative product photo

Why it's needed

Why this matters.

When the water separator is the missing piece, and when the problem lives elsewhere in the train. Review the points below.

01 · Key point

It catches bulk liquid before the dryer.

Centrifugal spin (cyclonic) or inertial baffles (vane) throw heavier water droplets against the housing wall; a 50 HP screw in humid summer can dump 20-30 gallons/day of liquid that would otherwise flood the dryer.

02 · Key point

No media, no element cost.

Mass separation, not fine filtration. Nothing to replace on a recurring cycle. The only wear item is the float drain on the sump. One-time install, years of unattended service.

03 · Key point

It extends every filter downstream.

By knocking bulk liquid out first it stops coalescing sumps from overflowing hourly, keeps refrigerated dryers off saturated-dewpoint trips, and dramatically reduces the volume condensate drains have to manage.

04 · Pro tip

Size for flow, pick the right drain.

Oversize is fine: 125% of compressor max SCFM gives lower face velocity and better separation. Float drain standard; electronic timer in dusty/oily environments where float seats foul.

05 · Where not to use

Don't expect it to remove vapor.

Coarse stage by design, removes liquid only. Vapor passes straight through, oil aerosol passes through, fine particulate passes through. → Re-spec to a refrigerated or desiccant dryer for vapor, coalescing filter for aerosol.

06 · Where not to use

Downstream of the dryer.

Installed after the dryer it has nothing to catch; the dryer already removed what it would have separated. → Re-spec the install location to between the wet receiver and the dryer (the only correct position).

07 · Where not to use

Horizontal mount on cyclonic units.

Cyclonic separators rely on gravity to drain collected water down the housing wall to the sump, horizontal mount breaks that flow and water re-entrains. → Re-spec to vertical orientation per the manufacturer's diagram, every install.

Key selection criteria

What we need to spec it right.

From the machine spec sheet to the part number. Answer what you know, leave the rest blank, and send.

04Choose your priority · core differentiator

Whatever your lever — performance, value, or price — SPC has the right brand.

Pick the priority; the quote desk handles the cross-reference.

01 Performance 2 brands

02 Value 1 brand

Where it's used

Industries served.

Each industry below uses this product across the listed areas. Open an industry to see how it fits the rest of its system.

Chemical & Petrochemical →

Petrochemical and process plants

Also applies to Humid-climate plant air systems · High duty-cycle industrial plants · Outdoor compressor installations · Compressor rooms without integrated aftercoolers · Plants with refrigerated dryers sized close to capacity · Audit-retrofit projects

Install · 6 critical steps

The things that matter on the first install.

Step 01

Position the separator between the wet receiver and the dryer

Standard order: compressor → aftercooler → wet receiver → WATER SEPARATOR (this product) → dryer → particulate pre-filter → coalescing → distribution. On systems without a discrete wet receiver, locate immediately downstream of the aftercooler. Never install downstream of the dryer: that defeats the purpose.

Step 02

Match flow rating to compressor output with 25% headroom

Separator SCFM rating at operating pressure should be 125% of compressor maximum SCFM. Oversize is fine: lower velocity through the cyclone means better separation efficiency. Undersize is the consistent failure: liquid passes through at high face velocities and the separator under-performs.

Step 03

Verify housing pressure rating and install with the cyclone vertical

Standard housings rated to 150-232 PSI; boosted systems or high-pressure gas service need a dedicated high-pressure housing. Cyclonic separators rely on gravity to drain collected water down the housing wall to the sump, horizontal-mount installations break that flow and water re-entrains in the airstream. Follow the manufacturer's orientation diagram exactly.

Step 04

Plumb the drain output to an oil-water separator, then to permitted discharge

On oil-lubricated compressor installs, the separator collects oil-bearing condensate that is regulated under most local stormwater and sanitary-sewer ordinances. Plumb to an OWS, OWS effluent to permitted discharge. On oil-free compressor installs, the condensate is still not certified hydrocarbon-free (atmospheric intake contamination), same OWS-to-permitted-discharge install applies.

Step 05

Verify drain function at install and document commissioning

Most separators ship with a float-operated drain; some ship as no-drain variants requiring a separate drain valve. Confirm the drain is installed and functional before pressurizing. Briefly open the manual override (if equipped) to confirm water passes; it should drain a slug then reseat cleanly. Record installation date, model number, flow rating, and drain type in the customer's air-quality binder.

Step 06

Brief the operator and set the drain replacement cadence

Daily walk-by: visually verify the separator is not weeping pressure (drain stuck open) and not pooling water at the inlet (drain stuck closed). Two-minute morning check is the right cadence. Float drains in heavy-duty service replace at 2-3 years; light-duty at 5+. Stock at least one replacement drain in the customer's MRO crib; drain failure dumps bulk liquid downstream and is the leading water-separator failure mode.

Troubleshoot · top failures

Most returns trace to one of these causes.

Symptom

Most likely cause

Fix

Refrigerated dryer downstream of the separator still flooding or tripping

Separator drain stuck closed (water overflowing through the separator into the dryer), separator undersized for actual flow, separator installed downstream of the dryer (architectural error), or separator orientation horizontal instead of vertical breaking the cyclone flow.

Verify the drain is operating, manually trip the override and confirm water discharges. If the drain is good, verify orientation against the manufacturer's diagram. If both are correct and the dryer is still flooding, the separator is undersized, upsize. Architectural errors (separator downstream of dryer) require re-piping.

Separator constantly losing pressure / drain weeping continuously

Float drain stuck open (most common, debris in the float seat is the usual culprit), failed float-arm seal, or on electronic-timer variants the timer is set too aggressive and dumps too frequently.

Replace or rebuild the float drain. Inspect the seat for debris (rust flakes, scale fragments) and clean. On electronic drains, reset the timer to longer intervals matched to actual fill rate.

Bulk liquid water reaching the coalescing filter despite separator installed

Separator drain stuck open intermittently (drain leaks pressure, water re-entrains and passes through), drain stuck closed (overflowing), or separator undersized for actual flow.

Replace the float drain. Verify separator capacity against actual SCFM. On humid-climate installs in particularly bad summers, additional capacity may be needed, staged separators or upsizing.

Separator weeping condensate around the housing (not from the drain)

Housing gasket or O-ring degradation (age-related), threaded connection loose, or, rarely, housing crack from a pressure-transient event.

Replace the housing seals. Inspect threaded connections and retorque. If the housing is cracked, replace the entire unit, patching a cracked pressure vessel is a regulatory violation.

Customer reports separator is "dry" / never sees water discharge

Customer is in a dry climate (low ambient humidity), compressor is undersized and the aftercooler is doing most of the condensation work, separator drain is functioning correctly and discharging water faster than the operator catches it, or, rarely, a bypass installed during maintenance routing air around the separator.

Verify the separator is actually online (check piping). On dry-climate installs, low discharge volume is normal; the separator's value is during humid weather events. If the unit truly never discharges and the climate is humid, look for an air-bypass that was installed during maintenance and never removed.

Loud spitting or pulsing noise from the separator

Drain attempting to discharge under partial liquid load, drain seat damaged and chattering, or, on automatic drains, power supply issue causing rapid open/close cycling.

Service the drain. Verify power supply if electronic. Pulsing on a healthy float drain is unusual; if it persists after drain service, return to vendor for inspection.
