What it is

Quick Coupler Plug

The male half of a quick-coupler connection. The plug mounts on a hose end or directly on a tool inlet and pushes into the socket to make the connection; its machined retention groove is what the socket's ball detent locks onto. The plug carries no moving parts: the locking sleeve and any vent valve live in the socket, so it is the simpler and lower-cost half of the pair. Plug and socket must share the same coupling profile (Industrial / Type A / ISO 6150B, Automotive / CA, Tru-Flate / Lincoln, ARO, or Euro) or they will not physically mate. Because plugs fit every tool and every hose end while sockets sit only at fixed supply points, a facility needs 3-5 plugs per socket. Plugs are a distinct line item and a quote should count them separately at the higher quantity.

Pictorial Representative quick coupler plug

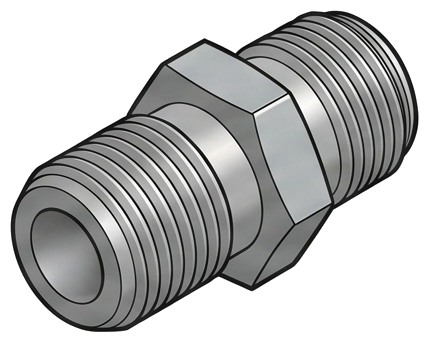

Quick Coupler Plug — representative illustration

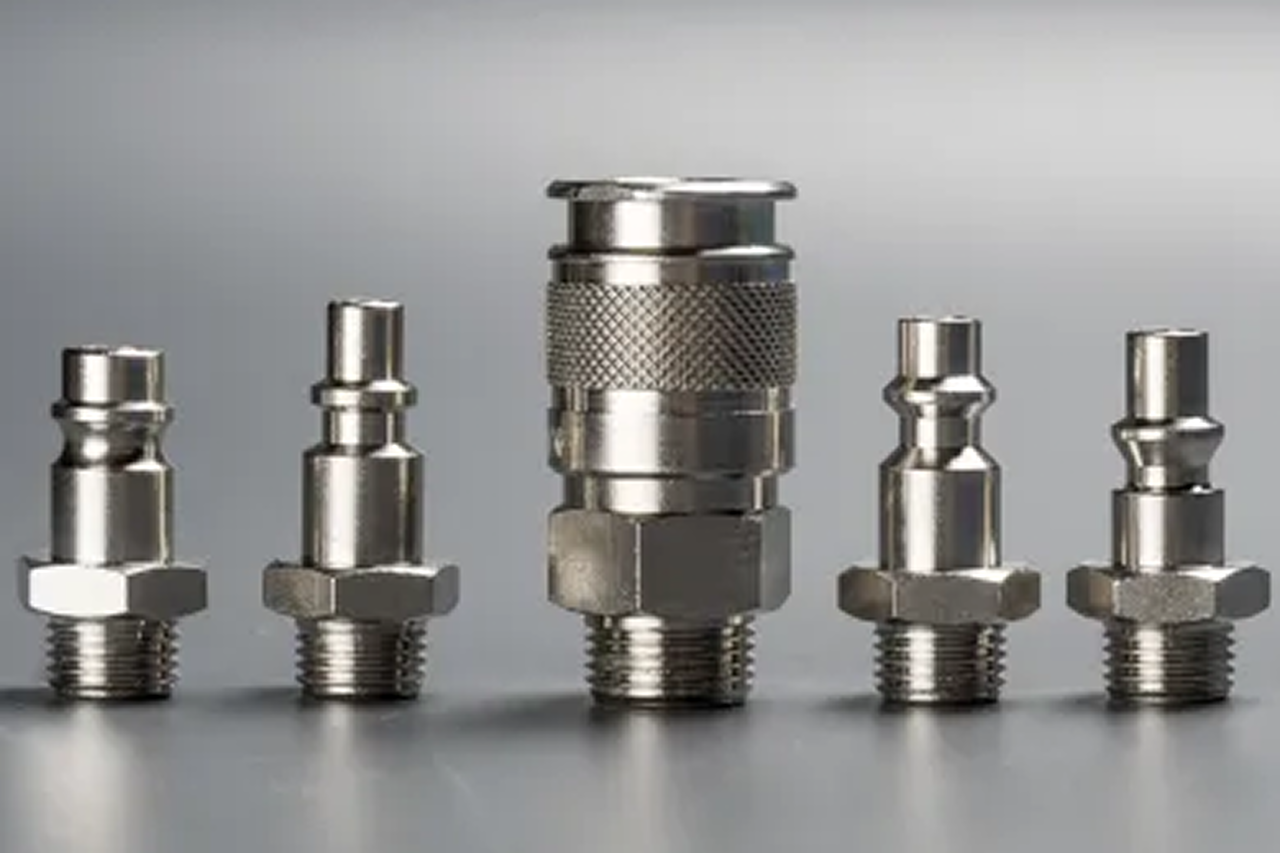

Real-world reference Representative quick coupler plug

Quick Coupler Plug — representative product photo

Why it's needed

Why this matters.

Choose the right plug, and when to step elsewhere in the coupler family. Review the points below.

01 · Key point

3-5 plugs per socket in service.

Plugs live on every tool inlet and every hose end; sockets sit only at fixed supply points. 100 pneumatic tools = 150-250 plugs in active service plus spares. Higher-volume half of the coupler family.

02 · Key point

No moving parts inside.

Just a machined retention groove the socket''s ball detent locks onto, locking sleeve and any vent valve live in the socket. Simpler, lower-cost half of the pair; the structural wear part.

03 · Key point

Profile-portable across socket types.

A matching-profile plug works in a standard industrial socket OR a safety-vented socket, existing plug inventory carries over when the customer converts sockets to OSHA-compliant safety variants.

04 · Pro tip

Profile first, every quote.

Five profiles look superficially identical: Industrial / Type A (ISO 6150B), ARO, Automotive (CA), Tru-Flate / Lincoln, Euro. If the customer doesn''t know, pull a sample from their install, wrong profile is a guaranteed return.

05 · Where not to use

Cross-profile "looks the same".

ARO plug in Industrial socket seats just enough to lock but not to seal, leaks indefinitely. → Verify profile compatibility before quoting; never substitute across profiles even when dimensions look close.

06 · Where not to use

Standard plug in a high-flow socket.

Smaller internal passage throttles air stream, tool runs 20-40% underpowered. → Match flow class to highest-SCFM tool; high-flow plug for large impacts (3/4"+), die grinders, sandblast guns.

07 · Where not to use

Brass/steel in paint shops.

Hard bodies scratch painted surfaces on every drop. → Switch to composite-body plugs (non-marring) in paint and finishing operations; stainless for wash-down and food environments.

Key selection criteria

What we need to spec it right.

From the machine spec sheet to the part number. Answer what you know, leave the rest blank, and send.

04Choose your priority · core differentiator

Whatever your lever — performance, value, or price — SPC has the right brand.

Pick the priority; the quote desk handles the cross-reference.

01 Performance 1 brand

02 Value 1 brand

Where it's used

Industries served.

Each industry below uses this product across the listed areas. Open an industry to see how it fits the rest of its system.

Automotive Manufacturing →

Automotive shops, tire shops, lube bays

Food & Beverage Processing →

Food and beverage plants with pneumatic conveying

Construction & Infrastructure →

Construction job sites and equipment rental returns
Equipment rentals (compressors, portable air kits)

Also applies to Pneumatic tool drops (impact wrenches, drills, sanders, paint guns, blow guns) · Dominant application by volume and replacement frequency · Hose end connections · Factory drop stations and wall outlets · Plug body wear is high · High loss rate · Pneumatic test benches and calibration stations · Paint shops and finishing operations · Composite-body plugs only

Install · 7 critical steps

The things that matter on the first install.

Step 01

Verify the coupling profile against existing sockets BEFORE handling the plug

Non-negotiable first step. Profile mismatch is the single most common quick-coupler installation failure, and it's 100% preventable. Pull one plug and one socket from the customer's existing installation and confirm: Industrial / Type A (ISO 6150B), Automotive / CA, Tru-Flate / Lincoln, ARO, or Euro. If the customer has a profile-ID chart, use it.

Step 02

Verify the end connection type and size against tool inlet or hose end

Male NPT plugs thread directly into the tool inlet (most common for impacts, drills, sanders). Female NPT plugs accept a male-threaded fitting from the tool. Hose-barb plugs slide into the hose ID and clamp on. Measure or read the thread size on the tool (1/4", 3/8", 1/2" common); for barbs, measure hose ID; a 3/8" ID hose needs a 3/8" barb, not 1/2".

Step 03

Apply thread sealant to threaded plugs only

Male NPT and female NPT need PTFE thread tape or pipe-thread sealant. Wrap PTFE clockwise, 2-3 wraps for general air service, leaving the first thread exposed so tape doesn't shed into the air stream. For thread paste, apply a thin even coat to male threads. Hose-barb plugs do NOT take thread sealant: they seal mechanically against the hose ID with a barb-and-clamp.

Step 04

Thread or insert to correct depth and torque

Threaded: hand-tight plus 1.5-2 turns with a wrench; over-torquing strips threads or cracks the tool's inlet housing. Hose-barb: slide barb fully into hose ID until the shoulder seats, install the clamp (worm-gear or crimp ferrule), tighten until the hose just begins to deform.

Step 05

Verify pressure rating against line pressure

Standard plugs rated 150-300 PSI working. Standard plant air at 90-120 PSI is well within range; high-pressure tool drops at 175+ PSI need the higher-rated body.

Step 06

Connect to the socket and verify the locking action

Push the plug straight in; it should seat with a positive click as the ball detent engages. Pull back to confirm locked. If it pulls free, the ball detent isn't engaging, verify profile match again, verify the socket's ball detent isn't worn. A fresh plug in a worn socket will not lock reliably; replace the socket.

Step 07

Pressurize and leak-check

Pressurize slowly. Listen at the plug-socket interface for hissing, any audible leak = wrong profile (most likely), damaged O-ring on the plug, or damaged seal seat in the socket. Disconnect and inspect.

Troubleshoot · top failures

Most returns trace to one of these causes.

Symptom

Most likely cause

Fix

Plug won't engage the socket, pushes in but doesn't click or lock.

Profile mismatch is by far the most common cause. Industrial plug pushed into ARO socket, etc. Body diameter close enough to enter but retention groove not positioned for the ball detent. Secondary: worn ball detent in socket, debris in socket preventing balls from retracting, or damaged retention groove on plug from previous misuse.

Verify profile by pulling a known-matching plug from the same socket family. If profiles match, inspect ball detent; pull the sleeve back, check that balls retract fully and spring back. If worn, replace socket. If groove looks gouged, replace plug.

Plug engages but leaks under pressure.

Worn O-ring on the plug's seal land (typical after 1-2 years of cycling), damaged O-ring from a contaminated socket (debris cut the seal), wrong-profile (plug seats far enough to lock but not far enough to seal), or damaged seal seat inside the socket.

Disconnect, inspect O-ring; if cracked or flattened, replace the plug. Wipe the plug's seal land and socket's seal seat clean. Verify profile match one more time. Reconnect and re-test.

Plug won't disconnect, sleeve pulls back but plug stays seated.

Oxidation between plug and socket (humid plants, coastal), socket's ball detent stuck (corrosion or debris), plug's retention groove has burrs from previous forced disconnect, or, on safety couplers, venting mechanism fouled.

Spray light penetrating lubricant at the interface, work the sleeve. If still stuck, depressurize the line and apply mechanical leverage. After freeing, inspect both halves, replace anything with visible damage.

Reduced tool performance after replacing an old plug with a new one.

Almost always flow class mismatch. Customer's socket is high-flow (often unmarked but installed for a sandblast gun, large impact, or grinder), and the new plug is standard-flow, smaller internal passage throttles the air stream. Tool runs but underpowered, slow under load.

Verify the original socket's flow class. If high-flow, quote and install a matching high-flow plug. Standard-flow plugs in high-flow sockets reduce tool output: 20-40% tool output drop.

Plug O-ring failing rapidly (less than 6 months).

Temperature above seal rating (NBR rated to ~200°F; hotter needs FKM or silicone), chemical attack from solvent or oil in the air stream, abrasive particulate scoring the seal, or repeated dry connects without seal lubrication.

For high-temperature, upgrade to an FKM-seal plug. For solvent/oil contamination, add or upgrade the upstream coalescing filter. For high-cycle (hundreds of connects per shift), spec higher-grade seal material and rotate plugs out every 6 months as preventive.

Plug threads stripped or cracked after install.

Over-torquing (most common with brass plugs in aluminum tool housings, brass threads strip first), wrong thread engagement (NPT installed into BSPT-tapped inlet, or vice versa), or galvanic corrosion between dissimilar metals over time.

Match thread type before install, NPT for US tools, BSPT for European; threads look similar but tapers differ. Hand-tight plus 1.5-2 wrench turns, never more. For dissimilar metals, use thread sealant rated for dissimilar metals.

Hose-barb plug pulled out of the hose under pressure.

Clamp not tight enough, wrong-size barb for hose ID (barb too small allowing hose to balloon and release), end-of-life hose with fatigue cracks, or clamp applied over hose's reinforcement bands instead of smooth wall.

Verify barb-to-hose-ID size match. Install fresh worm-gear clamp or crimp ferrule on the smooth section, positioned over the barb shoulder. Tighten until hose just begins to deform. For high-pressure or critical, use two-clamp configuration (one near barb shoulder, one near hose end).
